Product Overview

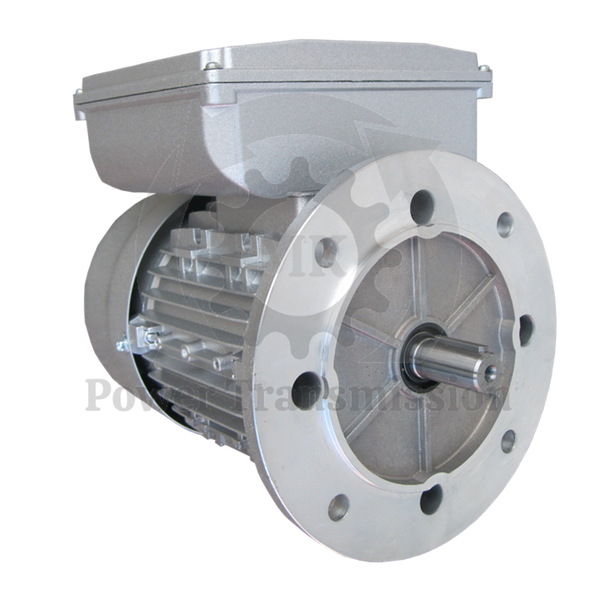

0.75 kW 1 HP Single Phase 940rpm Electric Motor 240V B5
Features:
- Low noise and vibration
- High quality bearings, grease packed for life
- Totally Enclosed Fan Cooled
- IP55 Protection Rating
- Epoxy Painted - Silver Colour
- Capacitor start/Capacitor Run
- IEC Standard
- Cast Aluminium construction
- Top, Left or Right Mount Terminal Box
- Class F insulation
- High Efficiency
Specifications:
- Voltage: 240V Single Phase 50Hz
- Duty: S1
- Power: 0.75KW (1HP)
- Speed: 6 Pole (940rpm)
- Shaft size: 24mm
- Weight: 13.5 kg
- Frame size: 90
- Mounting: B5 Flange
Suitable Applications:
- Hoists / Winches
- Pulley drives
- Fans
- Compressors
- Pump Drives
- Conveyor Drives
- Automation Devices
- Food / Pharmacy Packaging
- Food Processing
Optional Accessories (Available on request):
- IEC Flange/Foot Mounting
- Plug and Lead Available
- Slide Rails
- Industrial Gearboxes
- Couplings
- Pulleys
- Chain Drives
These motors operate with dual capacitor function (Cap Start/Cap Run) for better startup and continuous running. Don't mistake our motors with other eBay sellers who sell cheap and nasty motors on eBay. We are a professional business with many years of experience in the electric motors industry. Our motors are supplied to all kinds of industries as well as everyday customers all across Australia and Worldwide.
Single Phase Electric Motor 0.75Kw 940rpm
We also have both Single and Three Phase electric motors between 0.18Kw to 315Kw in 2, 4, 6 and 8 pole.
We do not deliver to PO Boxes. Please make sure you have a residential address in your details for us to send your order to.
Local Pick up from our Sydney, Prestons Warehouse available.
