Product Overview

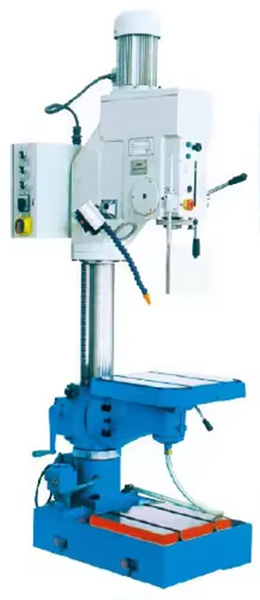

Drilling Machine 30mm Max Drilling Capacity with 3MT Spindle Taper
This drill press has many useful functions and is ablle to drill and tap inclined holes. It allows for auto feeding and auto tapping, and overall, the machine tool has strong rigidity and large torque. Some safety features include spindle protection, door auto power off, and a green shell 5 beads halogen lamp with a CE certification mark. The gears in the spindle box are all ground gears with a grade 6 precision and low noice within 75 decibels.
Specifications:
- Max drilling capacity: 30mm
- Max tapping capacity: M18
- Distance from spindle axis to generating line of column: 315mm
- Max distance from spindle nose to working surface of table: 520mm
- Max distance from spindle nose to working surface of base plate: 1080mm
- Spindle stroke: 135mm
- Max adjustment of work table and table rest: 480mm
- Swivel of table and table rest: ±45°
- Spindle taper: 3MT
- Spindle speed steps: 12
- Spindle speed: 70-2600rpm
- Spindle feed steps: 3
- Spindle feed range: 0.1, 0.2, 0.3mm/rev
- Column diameter: 125mm
- Effective working area of table (L x W): 374 x 374mm
- Effective working area of base plate (L x W): 370 x 360mm
- Dimension of T-slot of table and base plate: 2-14, 2-16mm
- 3 phase two-speed AC motor:
- Power: 1.1/1.5kW
- Voltage: 220V, 380V, 420V, 440V
- Speed: 960/1450rpm
- 3 phase pump motor:
- Power: 0.09kW
- Voltage: 220V, 380V, 420V, 440V
- Flow rate: 6L/min
- Packing dimensions (L x W x H): 650 x 1050 x 1950mm
- Net/Gross weight: 440/500kg
Standard Accessories:
- Vice
- Coolant
- Work Light
- Keyless Drill Chuck 1-16B16 and Arbour
- Spindle Protection
- Sleeve
- Wrenches
- Manual
- Tool box
