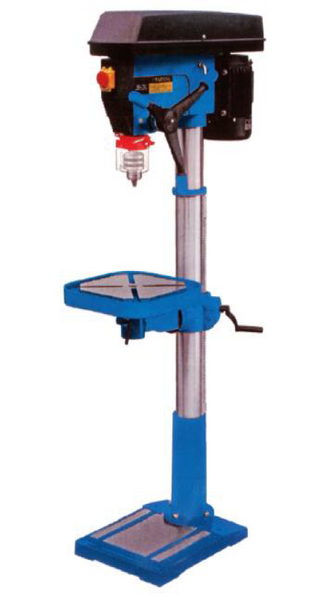

Drilling Machine 32mm Max Drilling Capacity with 4MT Spindle Taper

Drilling Machine 32mm Max Drilling Capacity with 4MT Spindle Taper

Specifications:

• Max drilling diameter: 32mm (1-1/4") (A)
• Motor power: 1.5kW
• Chuck capacity: 5-20mm
• Spindle travel: 120mm (B)
• Speed class: 12
• Speed: 50/60Hz 180~2940rpm
• Spindle taper: 4MT (C)
• Max distance from spindle axis to surface of column: 225mm (D)
• Max distance from spindle axis to surface of table: 700mm (E)
• Max distance from spindle axis to surface of base: 1225mm (F)
• Swing: 450mm
• Table size: 360 x 360mm
• Base size: 470 x 360mm
• Column diameter: 92mm (G)
• Height: 1710mm (H)
• Packing size: 1415 x 650 x 305mm
• Net/Gross weight: 115/120kg

Standard Accessories:

• Front Switch
• Chuck Guard

Optional Accessories (Available on request):

• Keyless Drill Chuck
• 6" Vice with Fixed Screws

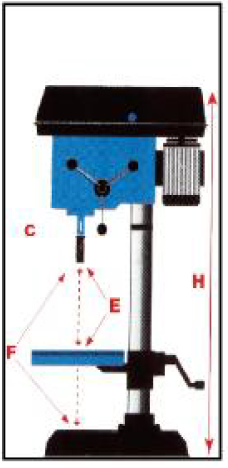

Dimensioned Diagrams
