Product Overview

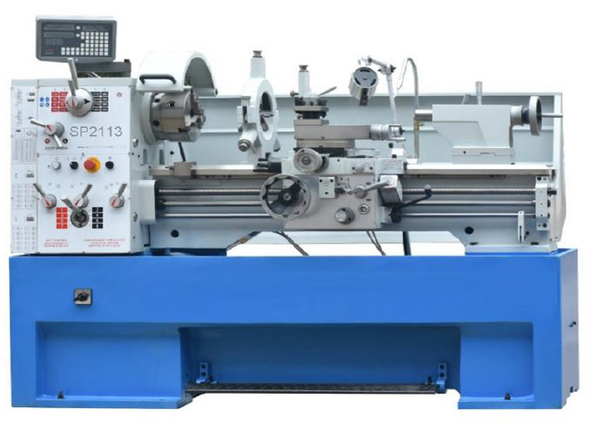

Lathe Machine 410 x 1000mm Turning Capacity with 52mm Spindle Bore
Specifications:
- Swing over bed: 410mm (16")
- Swing over cross slide: 255mm (10")
- Swing in gap diameter x width: 580mm (22") x 190mm (7 1/2")
- Height of centre: 205mm (8")
- Distance between centres: 1000mm (40")
- Width of bed: 250mm (10")
- Cutting tool max section: 20mm (3/4") x 20mm (3/4")
- Total travel of cross slide: 210mm (8 1/2")
- Total travel of top slide: 140mm (5 1/2")
- Spindle bore: 52mm (2")
- Spindle morse taper in bore: MT6
- Spindle speeds number: 16
- Spindle speeds range: 45-1800rpm
- Metric thread pitches & steps: 0.2 -14mm (39)
- imperial thread pitches & steps: 2-72TPI (45)
- Metric longitudinal feeds & steps: 0.05-1.77mm/rev (17)
- imperial longitudinal feeds & steps: 0.002"-0.067"/rev (17)
- Metric cross feeds & steps: 0.0291-1.019mm/rev (17)
- imperial cross feeds & steps: 0.001"-0.335"/rev (17)
- Range of module pitches & steps: 0.3-3.5MP (18)
- Range of diametral pitches & steps: 8-44DP (21)
- Tailstock quill diameter: 50mm (2")
- Total travel of tailstock quill: 120mm (4 3/4")
- Taper in tailstock quill: MT4
- Spindle drive motor: 4 Pole, 3 phase, 3.3/2.2kW or 4.5/3kW
- Coolant pump motor: 4 Pole, 3 phase, 0.09kW
- Overall dimensions: 2060 x 900 x 1640mm
- Net weight: 1300kg or 1350kg
- Gross weight: 1500kg or 1555kg
Standard Accessories:
- Foot Stand
- Coolant
- Foot Braker
- Follow Rest
- Steady Rest
- Face Plate
- 3 Jaw Chuck and 4 Jaw Chuck
- Sleeve and Dead Centres
- Thread Chasing Dial
- Work Light
- Splash Guard
- Instruction Manual
- Tool Box with basic tools
Optional Accessories (Available on request):
- 2 Axis Digital Readout (DRO)
- 3 Axis DRO
- Quick Change Tool Post
- MT4 Live Centre
- MT4 Tailstock Chuck and Arbour
- CE Accessories: Chuck Guard + Leadscrew Guard + New Type Tool Post Guard + CE Electrics
- Taper Turning Attachment
- High Quality 9pcs Set Turning Cutter with Tin Coated Tips
- Normally Turning Cutter 11pcs Set
- VFD Variable Speed Drive
