Product Overview

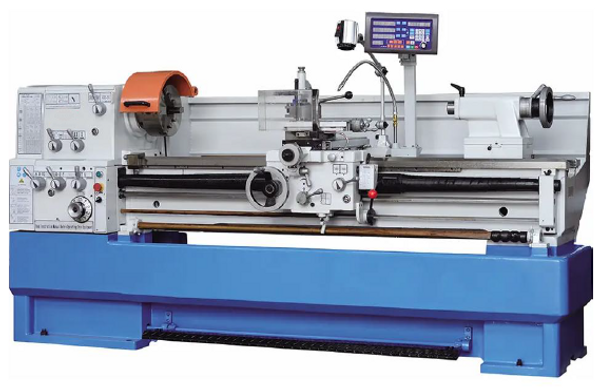

Lathe Machine 410 x 1500mm Turning Capacity with 58mm Spindle Bore
Specifications:
- Swing over bed: 460mm
- Swing over cross slide: 274mm
- Swing over gap: 690mm
- Distance between centres: 1000mm
- Width of bed: 300mm
- Spindle bore: 58mm
- Spindle taper: MT6
- Spindle nose: D1-6
- Spindle speeds range: 25-2000rpm
- Longitudinal feeds: 0.031-1.700mm/rev
- Traverse feeds: 0.014-0.784mm/rev
- Compound slide travel: 128mm
- Cross slide travel: 290mm
- Tailstock quill travel : 120mm
- Tailstock quill taper: MT4
- Metric thread pitches & steps: 0.1 -14mm (41)
- imperial thread pitches & steps: 2-112TPI (60)
- Main motor power: 4/5kW (5.4/7.5HP)
- Coolant power: 0.1kW (1/8HP)
- Overall dimensions: 2170 x 1040 x 1370mm
- Net/Gross weight: 1980/2045kg
Standard Accessories:
- Coolant
- Foot Braker
- Follow Rest
- Steady Rest
- Face Plate
- 3 Jaw Chuck and 4 Jaw Chuck
- Sleeve and Dead Centres
- Thread Chasing Dial
- Work Light
- Rear Splash Guard
- Instruction Manual
- Tool Box with basic tools
Optional Accessories (Available on request):
- 2 Axis Digital Readout (DRO)
- 3 Axis DRO
- Quick Change Tool Post
- MT4 Live Centre
- MT4 Tailstock Chuck and Arbour
- CE Accessories: Chuck Guard + Leadscrew Guard + New Type Tool Post Guard + CE Electrics
- Taper Turning Attachment
- High Quality 9pcs Set Turning Cutter with Tin Coated Tips
- Normally Turning Cutter 11pcs Set
- Magnetic Electrical Breaker
