Product Overview

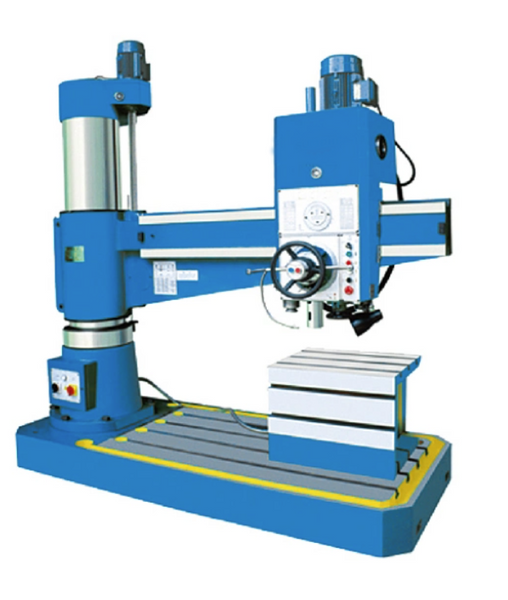

Radial Drilling Machine 50mm Max Drilling Capacity with 5MT Spindle Taper and 350 - 1600mm Spindle to Column
Specifications:
- Max drilling capacity/diameter: 50mm
- Distance between spindle axis and column: 350-1600mm
- Distance between spindle nose and surface of table: 320-1220mm
- Rocker arm lifting distance: 580mm
- Rocker arm lifting speed: 0.02m/s
- Spindle travel: 315mm
- Spindle taper: 5MT
- Spindle speed steps: 16
- Spindle speed range: 25-2000rpm
- Spindle feed range: 0.04-3.2mm/rev
- Spindle max feed resistance: 630 x 500mm
- Spindle box of horizontal moving distance: 1250mm
- Spindle motor power: 4kW
- Hydraulic clamping motor power: 0.75kW
- Cooling motor power: 0.09kW
- Arm lift motor power: 1.5kW
- Movement motor power: 0.55kW
- Overall dimensions: 2500 x 1070 x 2840mm
- Weight: 3500kg
