Product Overview

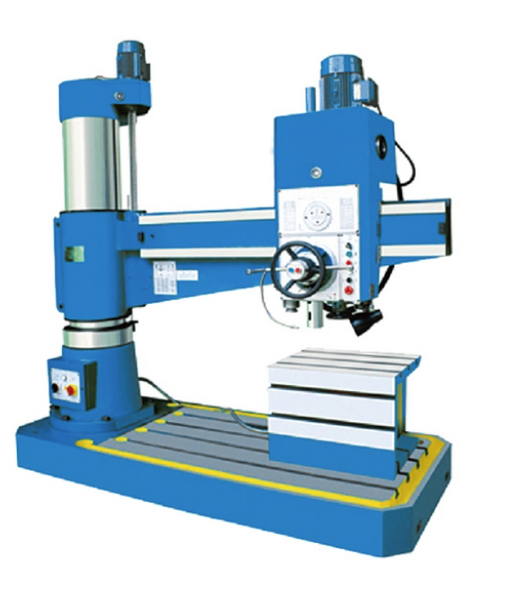

Radial Drilling Machine 50mm Max Drilling Capacity with 5MT Spindle Taper and 360 - 1600mm Spindle to Column
Specifications:
- Max drilling capacity/diameter: 50mm
- Distance between spindle axis and column: 360-1600mm
- Distance between spindle nose and surface of table: 260-1050mm
- Horizontal traverse of spindle head: 1140mm
- Spindle travel: 220mm
- Spindle taper: 5MT
- Spindle speed steps: 12
- Spindle speed range: 35-1200rpm
- Spindle feed steps: 6
- Spindle feed range: 0.1-0.56mm/rev
- Spindle max feed force: 9000N
- Spindle motor power: 4kW
- Vertical traverse speed of the arm: 1.3m/min
- Swivel of the arm: 360°
- Spindle motor: 3kW
- Elevating motor: 1.1kW
- Overall dimensions: 2280 x 990 x 2350mm
- Weight: 2200kg
