Product Overview

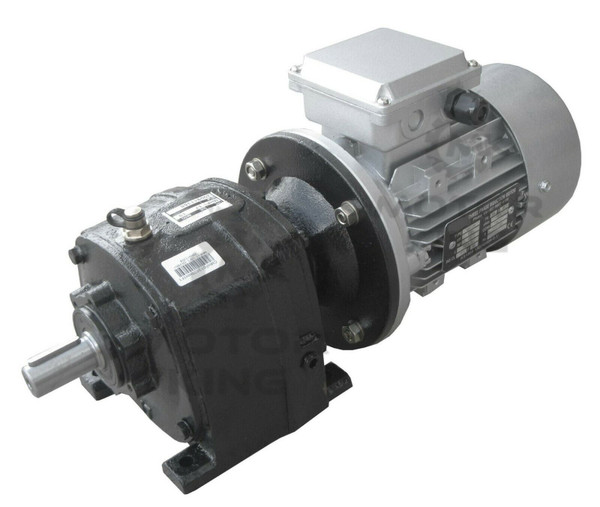

Single Phase Electric Motor & inline Helical Gearbox Drive
Please select from each of the options using drop down menu.
Specifications:
- Power: 0.18kW (0.25HP)
- Voltage: 240V Single Phase 50Hz
Torque Rating:
Reduction / Ratio | Max. Output Torque (Nm) | Output Speed (rpm) |
1:10 | 12 | 140 |
1:15 | 17 | 93 |
1:20 | 22 | 71 |
1:25 | 28 | 56 |
1:30 | 33 | 47 |
1:35 | 39 | 40 |
1:40 | 44 | 35 |
1:45 | 50 | 31 |
1:50 | 55 | 28 |
1:60 | 65 | 24 |
1:69 | 75 | 21 |
Features:
- IEC Standard
- IP55 Protection Rating
- Epoxy Painted
- Capacitor start/Capacitor Run
- Cast Aluminium construction motor
- Cast Iron Construction Gearbox
- Class F insulation
- High Efficiency
- Totally Enclosed Fan Cooled
- High quality bearings, grease packed for life
- Low noise and vibrationÂ
Suitable Applications:
- Hoists / Winches
- Compressors
- Conveyor Drives
- Pump Drives
- Automation Devices
- Food / Pharmacy Packaging
- Pulley drives
- Fans
- Food Processing
Optional Accessories (Available on request):
- Output flanges
- Couplings
- Pulleys
- Chain Drives
