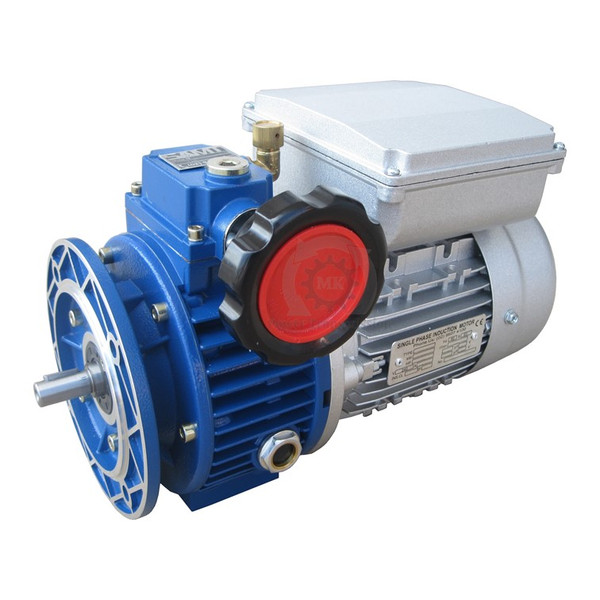

Single Phase Motor 240v 0.18kW 0.25HP 1400rpm Variable Speed Variator Controller 063

Single Phase Motor 240v 0.18kW 0.25HP 1400rpm Variable Speed Variator Controller 063

Dimensional Drawing:

Single Phase Variable Speed Motor Frame 63 Dimensional Drawing

Specifications:

• Power : 0.18kW / 0.25HP
• Voltage : 240v
• Frame Size : 63
• Speed Range : 200-1000 RPM
• Shaft Size : 11 mm

Features:

• IEC Standard
• Customised Silver Paint
• IP55 Protection Rating
• Epoxy Painted
• Cast aluminium construction with top mounted terminal box
• Class F insulation
• IE3 High Efficiency
• Totally Enclosed Fan Cooled
• High quality bearings, grease packed for life
• Low noise and vibration

Suitable Applications:

• Hoists / Winches
• Compressors
• Conveyor Drives
• Pump Drives
• Automation Devices
• Food / Pharmacy Packaging
• Pulley drives
• Fans
• Food Processing

Optional Accessories (Available on request):

• IEC Flange/Foot Mounting
• Slide Rails
• Industrial Gearboxes
• Couplings
• Pulleys
• Chain Drives
