Product Overview
Worm Gearbox Type 63 with Input Shaft
Replaces NMRV
Specifications:
- Type: 63
- Reduction: 1:10, 1:15, 1:20, 1:25, 1:30, 1:40, 1:60, 1:80
- Input Shaft size: 19mm
- Output shaft size: 25mm
Features:
- IEC Standard Universal Mounting Design
- Rigid and precise monolithic casing in cast aluminium
- Cylindrical worm shaft with ground and super-finished involute profile
- Epoxy Painted
- Forced ventilation
- High quality bearings
- Low noise and vibration
Suitable Applications:
- Hoists / Winches
- Conveyor Drives
- Pump Drives
- Automation Devices
- Food / Pharmacy Packaging
- Pulley drives
- Fans
- Food Processing
Optional Accessories (Available on request):
- IEC Motor
- IEC Flange/Foot Mounting
- Couplings
- Pulleys
- Chain Drives

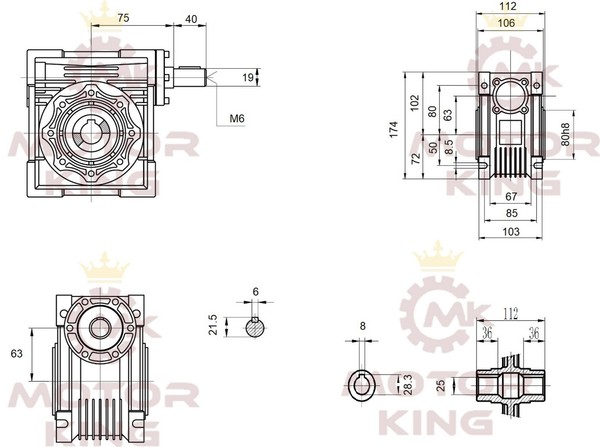

Dimensional Drawing:
