Product Overview

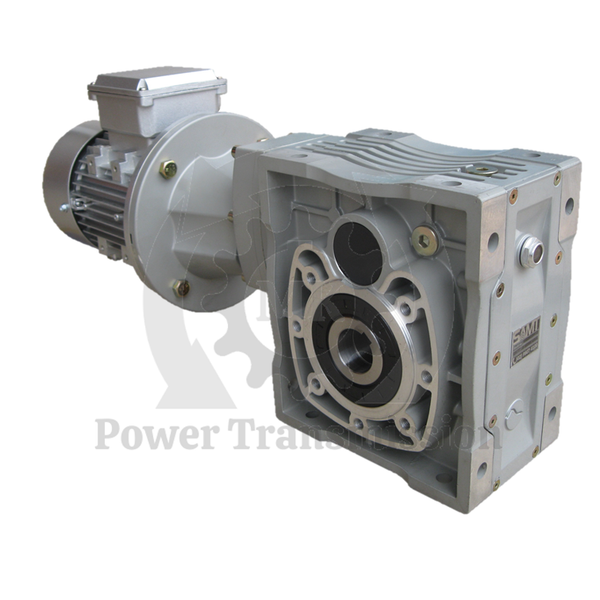

Three Phase 0.37kW 0.5HP 11rpm Type 90 Electric Motor & Worm Gearbox Drive i125
Specifications:
- Power: 0.37Kw (0.5HP)
- Voltage: 240V/415V Three Phase 50Hz
- Output Speed: 11.1rpmÂ
- Max. Output torque: 286Nm
- Output Shaft size: 38mm (Hollow Output Shaft)
- Gearbox size: Type 90
- Reduction: 125:1
- Service factor: 1.7 f.s.
- Duty: S1
Features:
- IEC Standard
- IP55 Protection Rating
- Epoxy Painted - Silver Colour
- Capacitor start/Capacitor Run
- Cast Aluminium construction with top mounted terminal box
- Class F insulation
- High Efficiency
- Totally Enclosed Fan Cooled
- High quality bearings, grease packed for life
- Low noise and vibration
Suitable Applications:
- Hoists / Winches
- Compressors
- Conveyor Drives
- Pump Drives
- Automation Devices
- Food / Pharmacy Packaging
- Pulley drives
- Fans
- Food Processing
Optional Accessories (Available on request):
- Output flanges
- Output shafts
- Torque Arms
- Couplings
- Pulleys
- Chain Drives
