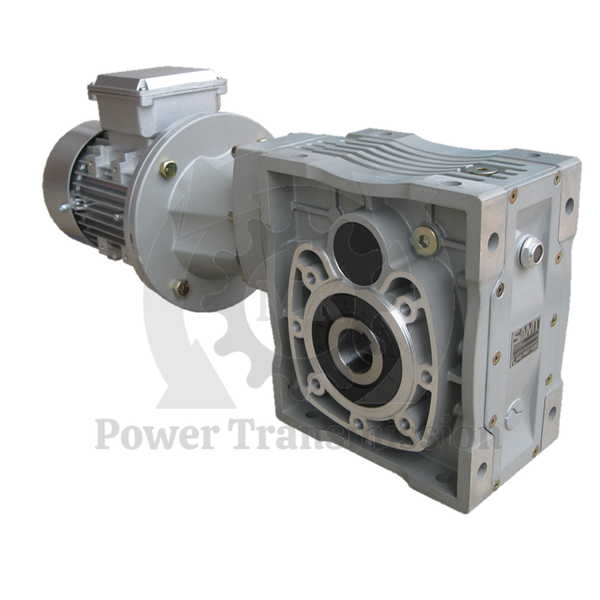

Single Phase 0.37kW 0.5HP 9rpm Type 90 Electric Motor & Worm Gearbox Drive i150

(No reviews yet) Write a Review
$845.00

Product Overview

Single Phase 0.37kW 0.5HP 9rpm Type 90 Electric Motor & Worm Gearbox Drive i150

Specifications:

  • Power: 0.37Kw (0.5HP)
  • Voltage: 240V Single Phase 50Hz
  • Output Speed: 9.3rpm
  • Max. Output torque: 343Nm
  • Output Shaft size: 38mm (Hollow Output Shaft)
  • Gearbox size: Type 90
  • Reduction: 150:1
  • Service factor: 1.5 f.s.
  • Duty: S1

Features:

  • IEC Standard
  • IP55 Protection Rating
  • Epoxy Painted - Silver Colour
  • Capacitor start/Capacitor Run
  • Cast Aluminium construction with top mounted terminal box
  • Class F insulation
  • High Efficiency
  • Totally Enclosed Fan Cooled
  • High quality bearings, grease packed for life
  • Low noise and vibration

Suitable Applications:

  • Hoists / Winches
  • Compressors
  • Conveyor Drives
  • Pump Drives
  • Automation Devices
  • Food / Pharmacy Packaging
  • Pulley drives
  • Fans
  • Food Processing

Optional Accessories (Available on request):

  • Output flanges
  • Output shafts
  • Torque Arms
  • Couplings
  • Pulleys
  • Chain Drives
