Product Overview
Please select from each of the options (Ratio, Input Shaft Size)

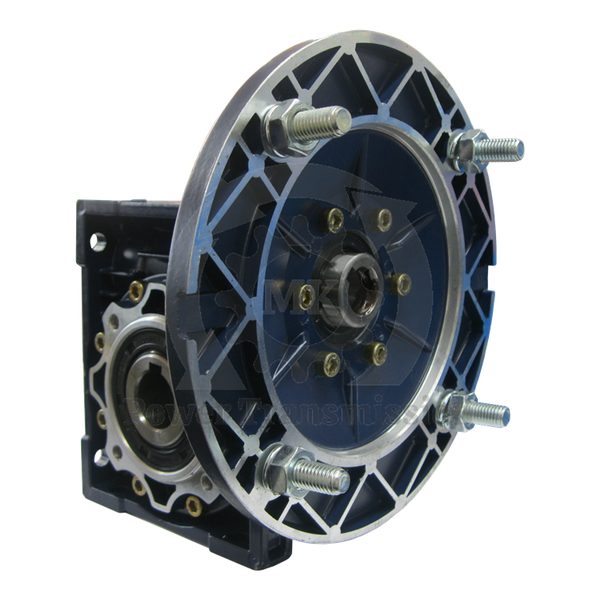

Worm Gearbox Type 150 B5
Replaces NMRV
Specifications:
- Type: 150
- Reduction: 1:10, 1:15, 1:20, 1:25, 1:30, 1:40, 1:60, 1:80, 1:100
- Input Flange: B5 100/112, B5 132
- Input Shaft size: 28mm, 38mm
- Output shaft size: 45mm
Features:
- IEC Standard Universal Mounting Design
- Rigid and precise monolithic casing in cast aluminium
- Cylindrical worm shaft with ground and super-finished involute profile
- Epoxy Painted
- Forced ventilation
- High quality bearings
- Low noise and vibration
Suitable Applications:
- Hoists / Winches
- Conveyor Drives
- Pump Drives
- Automation Devices
- Food / Pharmacy Packaging
- Pulley drives
- Fans
- Food Processing
Optional Accessories (Available on request):
- IEC Motor
- IEC Flange/Foot Mounting
- Couplings
- Pulleys
- Chain Drives
