Product Overview
Magnetic Drill 55mm Max Drilling Capacity with > 2.2 Tonne Magnetic Strength
Specifications:
- Voltage: 380V or 220V 3 phase
- Rated frequency: 50/60Hz
- Rated input power: 1.9kW
- No-load speed: 125rpm
- Max twist drill bit: 24 - 49mm
- Core drill diameter: 20 - 55mm
- Core drill depth: 50 or 75 or 100 (depending on core drill chuck)
- Shank of core drill: right angle shank 19mm
- Tapping: M10-M33
- Max stroke: 260mm
- Min steel plate thickness: 10mm
- Magnetic strength of 20mm thick steel plate: >22000N (2.2 Tonne)
- Rotation angle: 45° left and right
- Level displacment: 20mm
- Spindle inner hole taper: 4MT
- Net/Gross weight: 45.5/57.5kg
- Packing size: 560 x 250 x 605mm

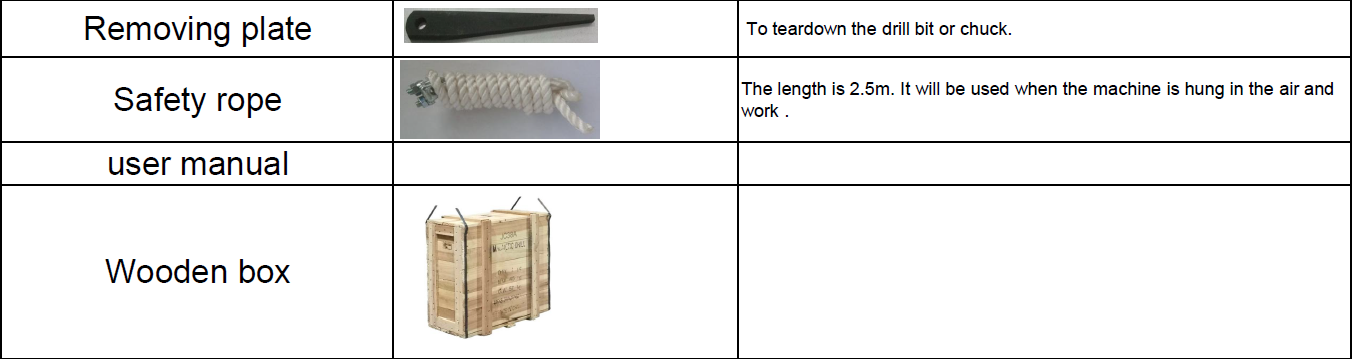

Standard Accessories:

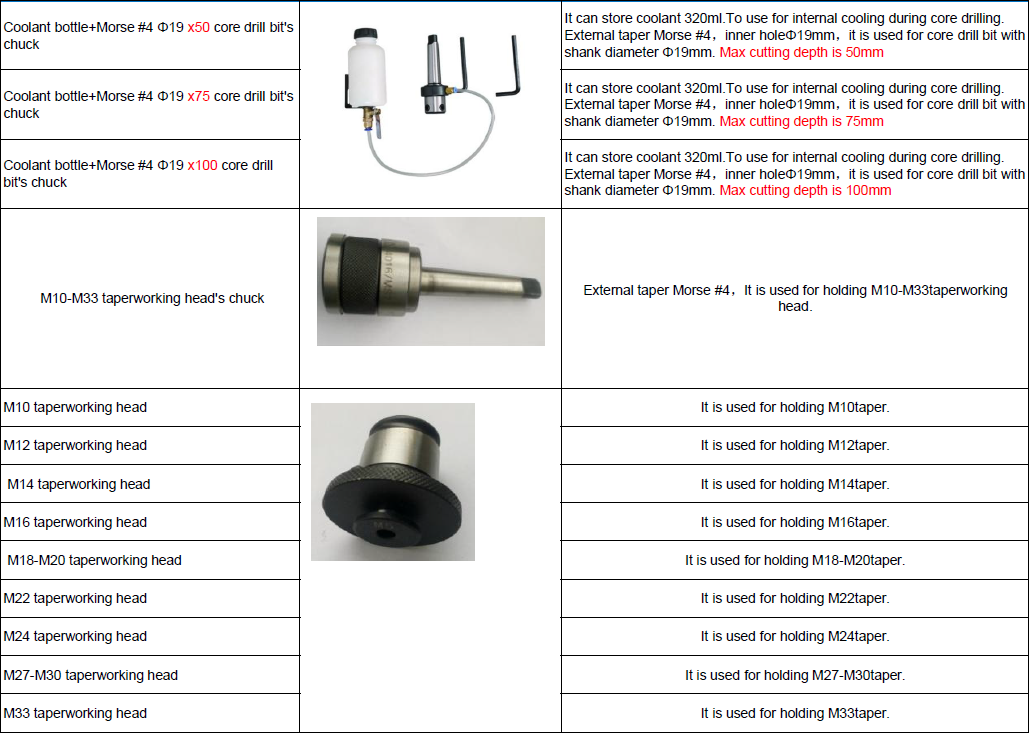

Optional Accessories (Available on request):
