Product Overview

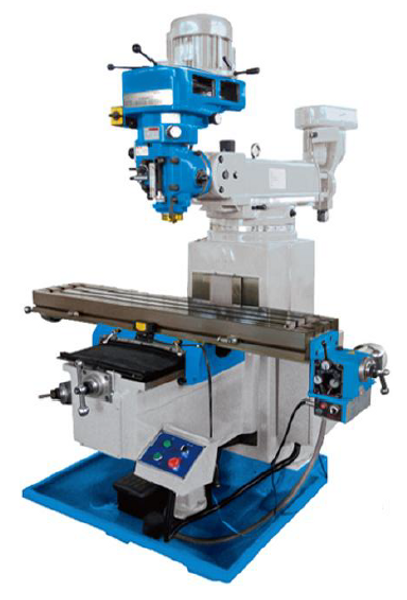

Milling Machine 1370 x 254mm Table Size with (X) 850mm - (Y) 400mm - (Z) 420mm Table Travel
Specifications:
- Table size: 1370 x 254mm
- Table travel (horizontal - cross - vertical): (X) 850mm - (Y) 400mm - (Z) 420mm
- Ram travel: 470mm
- T-Slot number/size: 3/16mm
- Distance from spindle nose to table: 0~420mm
- Distance from spindle to table: 0~420mm
- Distance from horizontal spindle to table: 0~420mm
- Distance from spindle to column: 0~420mm
- Spindle hole taper: R8/ISO30/ISO40
- Spindle travel: 127mm
- Spindle speeds: 65-4540rpm (16 steps 50HZ)
- Feeding of quill: 0.04, 0.08, 0.15mm/rev (3 steps)
- Swivel: 90°
- Head tilting: 45°
- Main motor power: 3.75kW
- Overall dimensions: 1516 x 1550 x 2080mm
- Net/Gross weight: 1380/1420kg
Standard Accessories:
- X-Axis Feeder
- Work Light
- Coolant System
- 6" Vice
- Mill Chuck Set
- Drill Chuck
- Oil Tray
- Draw Bar
- Instruction Manual
- Tool Box with basic tools
Optional Accessories (Available on request):
- 3 Axis Sinosoidal Digital Readout (DRO)
- Y-Axis Auto Feed
- Z-Axis Auto Feed
- Clamping Kit 58pcs Set
- Slotting Head
- Rotary Worktable: 160mm/200mm/250mm/320mm
- Dividing Head: 80mm/100mm/125mm/160mm
