Product Overview

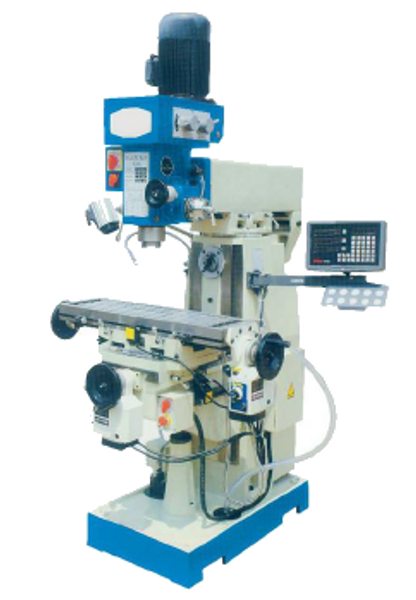

Milling Machine 800 x 240mm Table Size with (X) 400mm - (Y) 230mm - (Z) 350mm Table Travel
Specifications:
- Table size: 800 x 240mm
- Table travel (horizontal - cross - vertical): (X) 400mm - (Y) 230mm - (Z) 350mm
- Max drilling capacity: 50mm
- Max end milling capacity: 25mm
- Max face milling capacity: 100mm
- Max boring diameter: 120mm
- Max tapping diameter: M16
- Spindle bore taper: ISO40
- Spindle travel: 120mm
- Spindle speeds steps: 8
- Spindle speeds: 230-1825rpm (vertical) and 60-1350rpm (horizontal)
- Main motor power: 0.85/1.5kW (vertical) and 2.2kW (horizontal)
- Overall dimensions: 1290 x 1220 x 2100mm
- Net/Gross weight: 850/1000kg
Standard Accessories:
- X-Axis and Y-Axis Feeder
- Work Light
- Coolant System
- 6" Vice
- Mill Chuck Set
- Drill Chuck
- Oil Tray
- Draw Bar
- Instruction Manual
- Tool Box with basic tools
Optional Accessories (Available on request):
- 3 Axis Sinosoidal Digital Readout (DRO)
- Z-Axis Auto Feed
- Clamping Kit 58pcs Set
- Slotting Head
- Rotary Worktable: 160mm/200mm/250mm/320mm
- Dividing Head: 80mm/100mm/125mm/160mm
